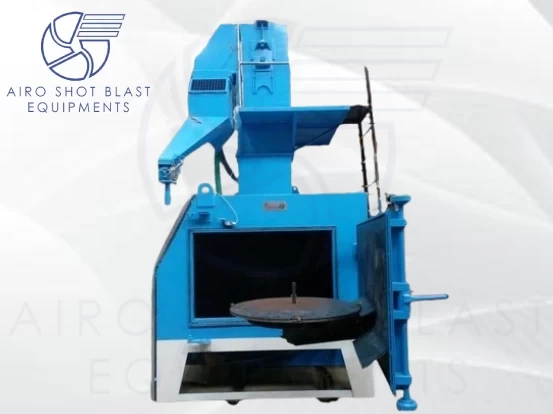

Table Type Shot Blasting Machine

• Castings and forgings can be cleaned with this product.
• For Casting and forging scarring and descending.
• For Shot peening of strained components.
• For Getting rid of heat-treated scales.
• For the Tint part of aluminum, zinc, and alloy steels with attractive finishing.
• Surface preparation for a protective thermal spray coating.
• From the first day of installation, the ROI is maximized.
• Ideal for deburring.

Table Shot Blasting Machine

The table type shot blasting machine has one or two rotary tables for loading the component. This table straddling the door swings inside the shot blasting cabinet, hence the name Swing Table Blasting Machine, while the uppermost blast wheel cleans the portion. The table spins in a circular and anticlockwise motion to ensure that the blast wheel thoroughly cleans the blasting surface.

These are especially useful in the following conditions:
Parts with forms that prevent them from being hung on hooks or parts that are too fragile to turn over.
Parts that must be shot blasted on only one side.
Glass container or metal extrusion molds.

Depending on the production and weight of the components to be processed, we have equipment with varying table diameters. Table machines with two tables for simultaneous loading and unloading, as well as table machines with a drum for big items.

The Table type wheel shot blasting machine is genuinely a universal machine. The many versions available range in production rate from 150 kgs/table to 3 MT/table. The machine is primarily made up of a turn table onto which the components are loaded. These machines are ideal for shot-blasting delicate components since there is no relative movement between the parts. For large components, the table span can be chosen based on production needs or job size.

Because the table shot blasting machine does not require any hangers or fasteners, it may blast clean any sort of component or product mix at the same time. Precision production ensures that the machine may be easily integrated with automated or robotic loading/unloading systems.

Rotary Table Shot Blasting Machine

The rotary table shot blast machine is perfect for blasting parts of various sizes, forms, and geometries, as well as delicate components made of delicate materials. This machine is perfect for cleaning surfaces, desanding castings, micro handling, rough surfaces, and other applications. Rotary table shot blast machines are ideal for small series and individual item production.

Rotary table blasting machines have a big loading door that allows for easy and quick loading. Parts are placed on a perforated rotating table and exposed to the blast jet generated by the blasting wheels. The table's standard working sizes range from 650 mm to 2,400 mm. The maximum workpiece height is 1,500 mm. Depending on the model, each rotary table machine might have one or two blasting wheels. The machine housing is strong and made of wear-resistant materials.

Swing Table Shot Blasting Machine

Swing Table Shot Blasting Machine is a type of table shot blasting machine that includes rotary tables for component loading. This shot blasting table soars on the door swings the interior surface of the cabin, and the blast wheel on top cleans the component.

The materials or materials to be blasted are kept on a round table in this table type shot blasting equipment. The swing table rotates vertically, exposing the components to the blast wheel's blast stream. An additional table is hinged to this blasting machine to shorten cycle time. The second section of the table is on the other side of the opening that rides and loads when the first one is blasting.
