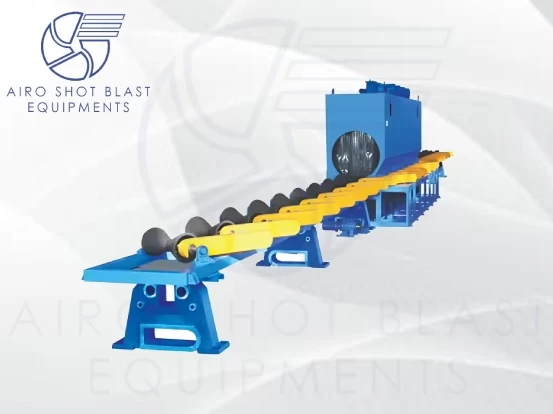

Cylinder Shot Blasting Machine

LPG & CNG Gas Cylinder Shot Blasting Machine

Cylinder Shot Blasting Machine is easy to operate with the least maintenance and the operator has to load and unload the cylinders on rotating diabolic rollers. The outside surface of the metallic LPG & CNG Gas Cylinder Shot Blasting Machine demands to be blast cleaned to remove rust, corrosion and prepare the LPG & CNG cylinders surface for thermal coating and painting.

It is used to automatically clean or etch the surface of the steel cylinders by blasting shots coming from Shot blasting wheels. The steel LPG & CNG cylinders take shot blasted as they pass through the blasting container. The cylinders also get rotated on the rollers as they pass through to the Shot blasting room to get the cleaning of the complete surface.

We provide specialized shot blasting machines for LPG, CNG, and gas cylinders. Manual Sand Blasting Machine & Wire Brushing was inefficient since they couldn't keep up with output and the surface cleanliness was never consistent. The look of the painted cylinder was very poor; both of these issues were remedied with Airless shot blasting machine equipment.

The LPG Cylinder Cleaning Machine can clean six cylinders per minute. Previously, it took 8 hours to remove color and rust from 20 cylinders; now, 300-350 cylinders are cleaned per hour. The machine has one or two high-power wheels.

Cylinder Shot Blasting Machine is composed of:

• Blasting Chamber
• Lower cabin with the helical mover
• LPG Cylinder Rotation and Moving System
• Elevator
• Sift & Separator
• Dry Filter Unit (dust collector)

Standard Accessories for LPG Cylinder Shot Blasting Machine

• Blasting Cabinet with Inventory Door, Bucket Elevator, Abrasive Cleaning System, Abrasive Storage Silo.
• Automatic Abrasive Control Valve cum sound reducer.
• One /Two Numbers of Blast Wheel Assembly entire unit with bearing housing and motor and mounting plate.
• Cabinet Liner Manganese Steel Liner in size 12 mm indirect blast zone remaining area lined with rubber liner 6 mm thick.
• Fabric Bag Dust Collector with a dynamically balanced blower unit with ducting to keep Dust Collector about 1 meter away from Blast Cabinet. Ducting has a damper valve to regulate suction. The automatic Mechanical Shaker unit is provided for Dust Bags.
• Independent Cubical Control Panel with ammeter and Voltmeter and timers, push-button, contactor, thermal overload relays with inbuilt single phase preventer, overload protection, HRC fuses, indicating lamps and main isolator, etc.
• Electrical Motors Various motors as items in the technical term sheet having TEFC Construction 3 phase, 415 volts, 50 cycles, ABB/CG make only. Generally as per the enclosed Technical Specification Sheet.
