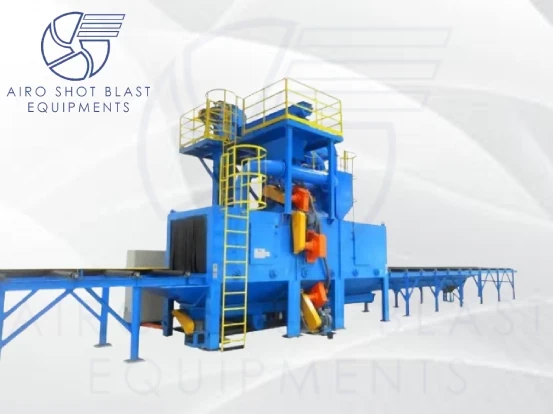

Roller Conveyor Shot Blasting Machine

• For surface preparation includes beams, metal sheets, pipes/tubes, slabs, and welding projects.
• For surface smoothing includes pickled or degraded surfaces, as well as machining lines.
• For shot blasting operation & decorative blasting is employed on light metals such as stainless steel, copper, and brass.
• In shot Peening operation high-stress parts, such as torsion bars.
• For deburring involves flame cutting, sawing, and stamping items.

Introduction Of Roller Conveyor Shot Blasting Machine

Roller conveyor shot blasting machine manganese steel shields cover the machine's sturdy casing & are straightforward to repair, expanding its lifetime. A series of rubber screens in entry & exit cleaning rooms retain abrasive within the shot blasting machine. If any abrasive media stays on the job pieces behind shot blasting process, it is assigned to a trough equipped accompanied by a quick height modifiable spinning brush & a heightened pressure fan. Screw conveyors, elevators, & abrasive cleaners secure particular the abrasive is cleansed automatically & repeatedly.

Roller conveyor shot blasting machines are typically suited to blast bigger job pieces like steel sheets, profiles, beams, & basic structures. Shorter jobpieces could even be shot-blasted & inserted into specially prepared mesh-lined housings & frames. A crane & forklift loads job pieces onto a roller conveyor, whichever transports them throughout the machine. The power of blasting wheels & acceleration of the roller conveyor is controlled by the operation & job piece type. Airo Shot Blast Equipments shot blasting machines contain heightened efficiency blasting wheels. They are ascended at an angle & positioned optimally for less energy & abrasive usage.

Steel plate cleaning shot blasting machines for profiling is one of the roller conveyor shot blasting machines that are created & manufactured by taking advantage of comparable goods from both inside & outside the nation. Accompanied by cutting-edge speeds, it terminates exterior adulterations, scale, & additional impurities quickly.

Roller Conveyor Blasting Machines

Roller conveyor shot blasting machines may be incorporated into high-production lines for preliminary color applications, alike drying chambers, automated coloring chambers, & drying tunnels. A roller conveyor shot blasting equipment is often employed to clean metal plates & profiles in a continuous through feed operation. Airo Shot Blast Equipments provides a range of roller conveyors for an assortment of applications & work rates. The Type G series is primarily intended for the treatment of metal plates & profiles in the steel construction & preparation sectors. The equipment could be furnished alone & as parts of an automated conveyance & sawmill/bore line.

The H beam roller conveyor shot Blasting machine is utilized to cleanse the exterior of steel pipes, round bars, drilling rods, & so on. It may release rust, oxide coatings, paint film, & intensify. To distribute steel pipe, the machine makes use of a V conveying roller & rubber wheel. When steel pipe goes ahead on a conveyor, it rotates simultaneously. When the steel pipe passes via blasting region, the elevated speed steel shots strike exterior of steel tube & cause blasting. The equipment is extensively utilized in petroleum & gas industries, steel pipe stockholders, chemicals, grid engineering boilers, & so on. The equipment consists of an in-feeding roller conveyor, a shot blasting room, a blasting turbine, a shot recycling system, a dust removal system, an out-feeding roller conveyor, & an electrical control system.

Roller conveyor shot blast systems are utilized to descale, rust, release paint, prepare paint, & clean metal plates, pipes/tubes, I-beams, & welded fabrications. Thin gauge aluminum profiles, hefty steel profiles, & steel slabs all produce optimal blast results. Typical roller conveyor machines could handle outcomes ranging in width from 600-5,000 mm, accompanied by roller conveyor speeds varying from 0.5-4.0 m per minute. Higher-performance systems may achieve product speeds of up to 8 m/min. The number & position of blast turbines enable optimal blast effects. Screw conveyors & elevators deliver spent blast media, scale, and particles.  It delivers via a rotary screen drum, an air wash separator & eventually via a additional static & tilting screen, before existing deposited in the large abrasive media hopper, with level sensors.

The blasting media enters the high-speed spinning turbine via a central feed tube. The revolving turbine's centrifugal force propels abrasive media at until 120 m/s toward the elements to be blasted. The processing outcomes are determined by the blade design, insertion point, & turbine speed, in combination with the blasting material. The amount of blasting media utilized & the transmission to the turbine blades may be readily modified to optimize economic use. The blast media flow is either fixed & may be automatically modified via the PLC/control panel. A clam shell valve directs media flow from the media hopper to the turbines. The blast pattern e.g. position of the hot spot could smoothly be modified from outside of the turbine. The turbine speed could be modified with a frequency inverter thus permitting gentle & extremely assertive blasting.

Benefits Of Roller Conveyor Shot Blasting Machine

• Roller conveyors are available in a range of sizes and speeds to suit different applications.
• For the treatment of metal plates or profiles in the steel construction and preparation sectors.
• Stand-alone equipment or incorporated into an automated transportation or sawmill/bore line.

Features Of Roller Conveyor Shot Blasting Machine

• Compact construction, high work efficiency, good cleaning quality, safe & dependable work, smooth operation, & simple operation.
• Roller conveyor shot blasting machine cleaning chamber with high chromium steel protective plate, which is wear & impact resistant & has good strength. Indoor roller table with a wear-resistant sheath.
• Use an electrical roller conveyor to transfer heavy & lengthy metal pieces.
• The separator may vary the sealing between the baffles, the thickness of the fabric, & the motion track to provide a good separation effect.
• The dust collector (bag or cartridge) has a high air absorption capacity, clean dust removal and filtration.

Roller Conveyor Shot Blasting Machine Price

We are the leading roller conveyor shot blasting machine manufacturer in India. Our roller conveyor shot blasting machine price depends on the type of conveyor shot blasting machines in India. We also offer all types of shot blasting machines, wheel blasting machines, shot blasting cabinets, wet blasting machines, shot blasting spare parts, diabola shot blasting machine, etc.
