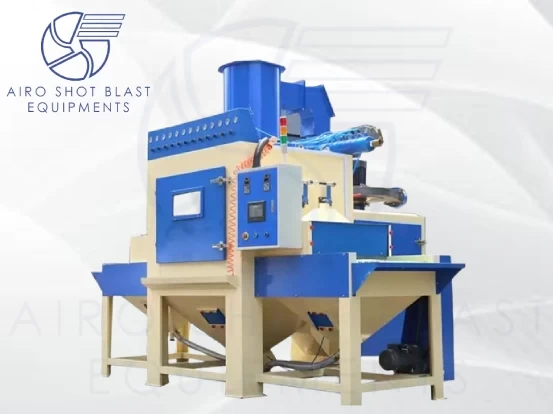

Automatic Shot Blasting Machine

Automatic shot blasting machine is a high-productivity, high-quality shot blasting process. This is an airless surface preparation process that uses high RPM turbines without the usage of compressed air. Conveyor systems for automatic shot blaster are available in a variety of configurations. Roller conveyors, monorail/Hanger conveyors, Diablo shot blasting machine, tire rollers, trolley conveyors, table conveyors, belt conveyors, mesh conveyors, and so on. These conveyors are used to transport material into and out of automatic shot blasting equipment and are specially constructed for wear and tear. They are manufactured in-house according to job specifications.

Automatic shot blasting equipment and painting lines are a one-stop shop for all surface preparation and painting needs. Handling, precleaning, pretreatment, drying, shot blasting, painting, and drying systems are all integrated into these machines. Jon will emerge off the conveyor after completing all corrosion prevention processes. These lines are built with both a roller conveyor and a monorail conveyor system. Options for automatic or manual spray painting can be supplied, and they can be built to fit the size of the task and the needs of the end user. Conveying systems of various types can be supplied with the equipment.

The most popular machine in the fabrication sector, are power projects, petrochemical construction projects, and so on. This machine can shot blast all forms of structural steel products. Machines with aperture sizes ranging from 1 meter x 1 meter to 3 meters x 2 meters are available.

Roller Conveyor Shot Blasting Machine

Automatic roller conveyors shot blasting machine of plates, flats, bulb bars, rolled angles, channels, and other flat goods. This sort of equipment is commonly employed in the shipbuilding sector, storage tank projects, and other applications that require a huge number of plates. These machines include a brush-off and blow-off system for automatic abrasive removal from the project. Machines ranging in width from 1 meter to 4 meters are offered.

Hanger Shot Blasting Machine

Used for a variety of jobs in the automotive, casting and foundry, fabrication, and piping industries, among others. Several projects are loaded onto the hangers at the same time for shot blasting. These are high-production machines that are also utilized for batch production. automatic hanger shot blasting Machines are available in a variety of sizes and for a wide range of jobs.

Auto Diablo Shot Blasting Machine

The pipe is conveyed using Diablo rollers and a tire-style conveyor for the automatic shot blasting machine operation. Machines can be developed for pipe diameters ranging from 1/2" to 60" and are often equipped with feeding, buffer stock, loading, and unloading systems. Pipe coating is widely utilized in the petroleum, electricity, oil and gas, and petrochemical industries, as well as pipeline projects.

Belt and Mesh-type Conveyor Blasting Machine

Small components in mass production lines are transported using a perforated wear resistance belt and mesh-type conveyor. Commonly used in the fabrication of pavement tiles, cutlery, and minor components. It is possible to construct a conveyor system ranging in width from 500mm to 1.2 meters. A machine of the size and design of a fear container that can be utilized for cross-country pipeline projects can be built.

Automatic Table Shot blasting Machine

The most popular name for a table type shot blasting machine is a swing table. Small and medium-sized components are used in the manufacturing business. There are machines available with Table sizes ranging from 1 meter to 2.5 meters in diameter.

Automatic Internal pipe blasting Equipment

Internal pipe blasting equipment is classified as either air blasting equipment or wheel blasting equipment. Internal pipe blasting machines remove rust, filth, scale, and residues from inside the piping fast and effectively, and they can also minimise internal surface tension. Machines are available in a variety of sizes and for a wide range of jobs.

Tumblast Shot Blasting Machine

The tumblast shot blasting machine with a rubber belt is great for tumbled mass-produced items and will completely fulfill your requirements. The blasting chamber is a small chamber with shafting and drums to hold the rubber belt. This equipment is interconnected with a recovery, cleaning, and dust collection system. Machines range in size from 0.5 to 3 cubic feet.

Shot Peening Machine

Shot peening machine is a metal stress-relieving procedure. Shot peening machines might be of the turn table, spinner hanger, or reciprocation variety. Pressure blasting and centrifugal airless equipment are both options.

Advantages of an Automatic Blasting Machine

• The automatic shot blasting process is carried out in a closed circuit. A screw conveyor situated at the bottom of the machine collects the projected steel grit and takes it to the elevator bucket, which transports it into the recuperator hopper, which is mounted over the machine and distributes it within the centrifugal turbines.
• The auto shot blasting machine has a one-of-a-kind design, a simple and dependable structure, is simple to run, has great processing efficiency, and consumes less energy.
• The auto shot blasting machine is equipped with a separator, which cleanses the used abrasive pollutants, considerably lowering abrasive consumption.
• The electrical components of the automatic shot blaster machine are made from high-quality, well-known brand parts that are safe, trustworthy, and have a long service life.
