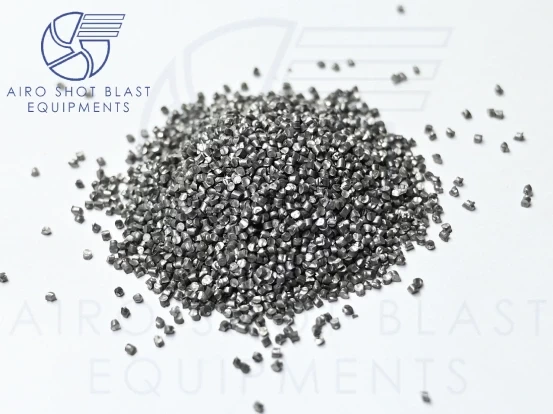

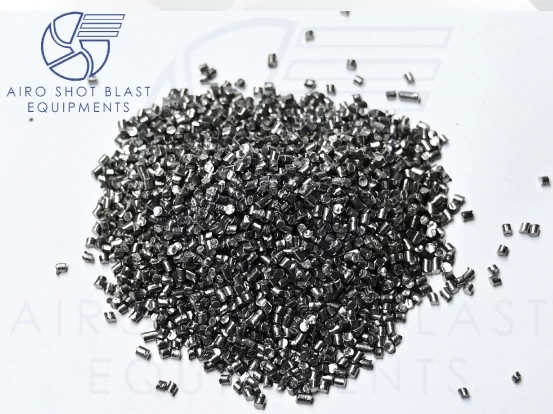

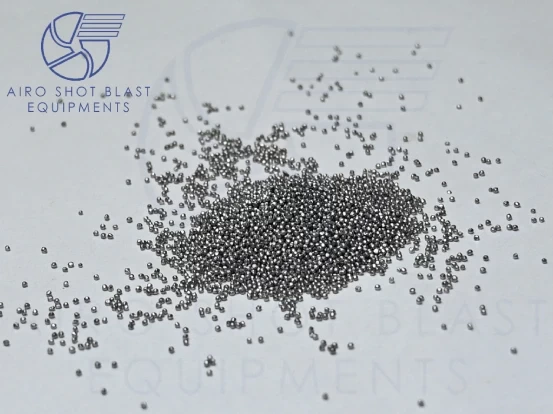

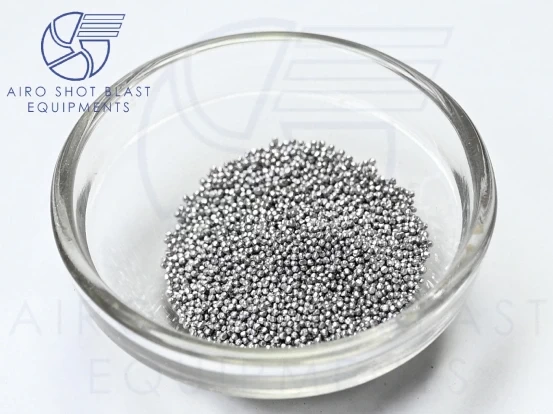

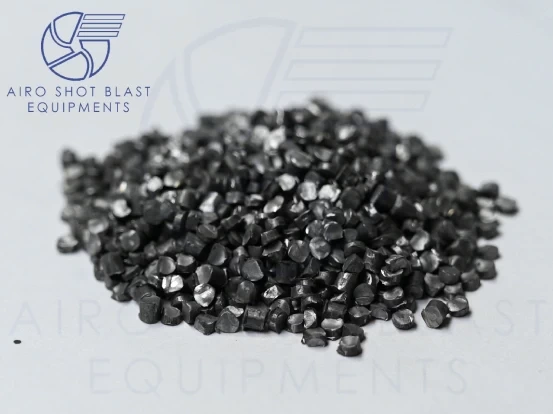

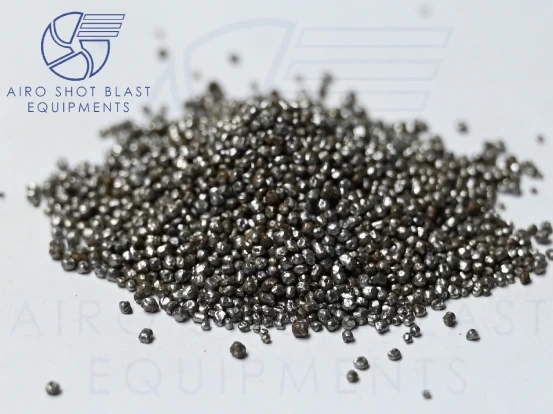

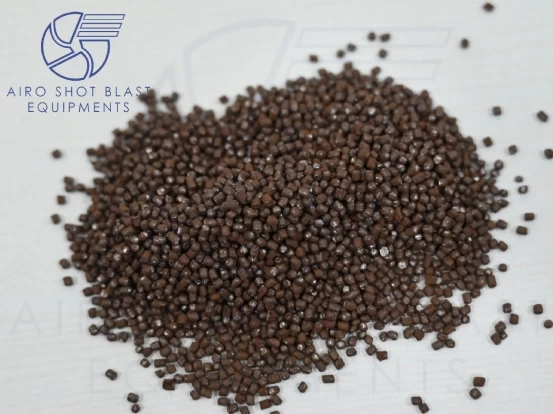

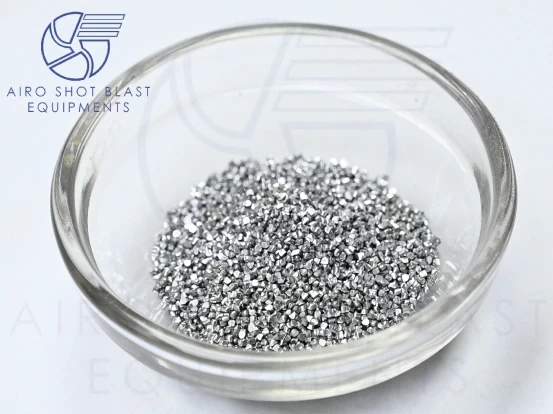

Cut Wire Shot

• For Surface finishing and Surface cleaning
• For Deburring
• For Shot blasting machine & peening operation
• For Mass finishing
• For Glass bead blasting
• To remove coatings, such as paint or rust, and improve surface preparation

Cut Wire Shot particles are perfectly suited for the majority of shot blasting operations due to their intrinsic qualities. The shot's superior physical qualities are one of its key characteristics. High carbon steel spring wire with a tensile strength of 250,000 to 310,000 psi and a high resistance to fatigue failure from impact is used to make a cut wire shot. The shot is a perfect blast medium for shot peening applications since it rapidly rounds into hard, uniform-sized spheres when in use. In some cases, the lengthy shot life has cut peening expenses by up to 50%. Cutwire shot has decreased the cost of shot-cleaning forgings and castings in a number of facilities by 30 to 80 percent thanks to the same long life.

Round cut wire shot is a type of abrasive material made from cutting stainless steel wire into small, spherical particles. It is used in various industrial applications, such as surface finishing, cleaning, and deburring. Cut wire shot is known for its hardness, durability, and long lifespan, making it a cost-effective abrasive option. It is also commonly used in shot blasting processes, where it is accelerated and propelled toward a surface in order to remove rust, paint, or other coatings. Because of its sharp edges and consistent size, cut wire shot is an efficient and effective abrasive material for a wide range of industrial applications.

Steel Cut Wire Shot

Steel Cut wire shot abrasive in use quickly condenses into spheres, and as a result, it moves through shot blast machinery with little resistance. Because the shot does not easily degrade while being used, these round particles are incredibly effective for cleaning while maintaining maximum hitting power. The glass plates that make up the majority of the classifier are spaced apart and tapered slightly. When a shot is dropped into the space between the glass plates, it falls and wedges at the point indicated by the size that it corresponds to. Photographs taken through the two sheets of glass against a white background are used to record the size distribution.

Shot cleaning or shot peening machine generally involves blasting a steady stream of shots against the workpieces. Sand, scale, and other debris are removed from the work during cleaning by the high-velocity shot particle. In peening, the shot particle impacts the work's surface and causes a minor permanent set where it makes contact. A compressive tension is created in the component's outer layer as a result of the part being completely covered by a peening blast.

After the shot has hit the object being cleaned or peened, it is rapidly retrieved and circulated through the machinery to be utilized again. There are millions of particles involved in any piece of blasting equipment, so it is predicted that many of the shot particles will be worn out or shattered each minute. Each shot particle strikes the work at high speed many times per hour. It is consequently preferred to have a shot with high tensile strength, maximum fatigue life, high hardness, and suitable form.

Use of Steel Cut wire shot requires no modifications if shot blasting equipment is in good condition. A typical issue with shot blasting equipment is excessive shot leakage or waste.
No machine, regardless of shot, can be operated economically with an excessive shot loss. Leakage that is minimal enough to fully utilize the long lifespan of cut wire shots typically results in significant cost savings due to lower shot consumption.

Cut Wire Shot Features

Cut wire shot is known for the following features:

• Hardness:  Steel Cut wire shot is made from high-hardness stainless steel, making it durable and long-lasting.
• Consistency: Cut wire shot particles are cut to a consistent size, making it an efficient and effective abrasive media.
• Sharp Edges: The sharp edges of steel cut wire shot provide excellent cutting action, making it an efficient material for removing coatings and contaminants.
• Reusability: Cut wire shot is reusable, reducing waste and overall costs compared to disposable abrasives.
• Eco-Friendly: Unlike other abrasives, cut wire shot is non-toxic and biodegradable, making it an environmentally friendly option.
• Versatility: Cut wire shot is suitable for a wide range of metal and glass surfaces, making it a versatile abrasive material.
• Cost-Effective: Round cut wire shot has a long lifespan, reducing the need for frequent replacement, making it a cost-effective abrasive option.
