Shot Blasting Machine

From ₹40,000

Lead time 3-4 weeks

Specifications

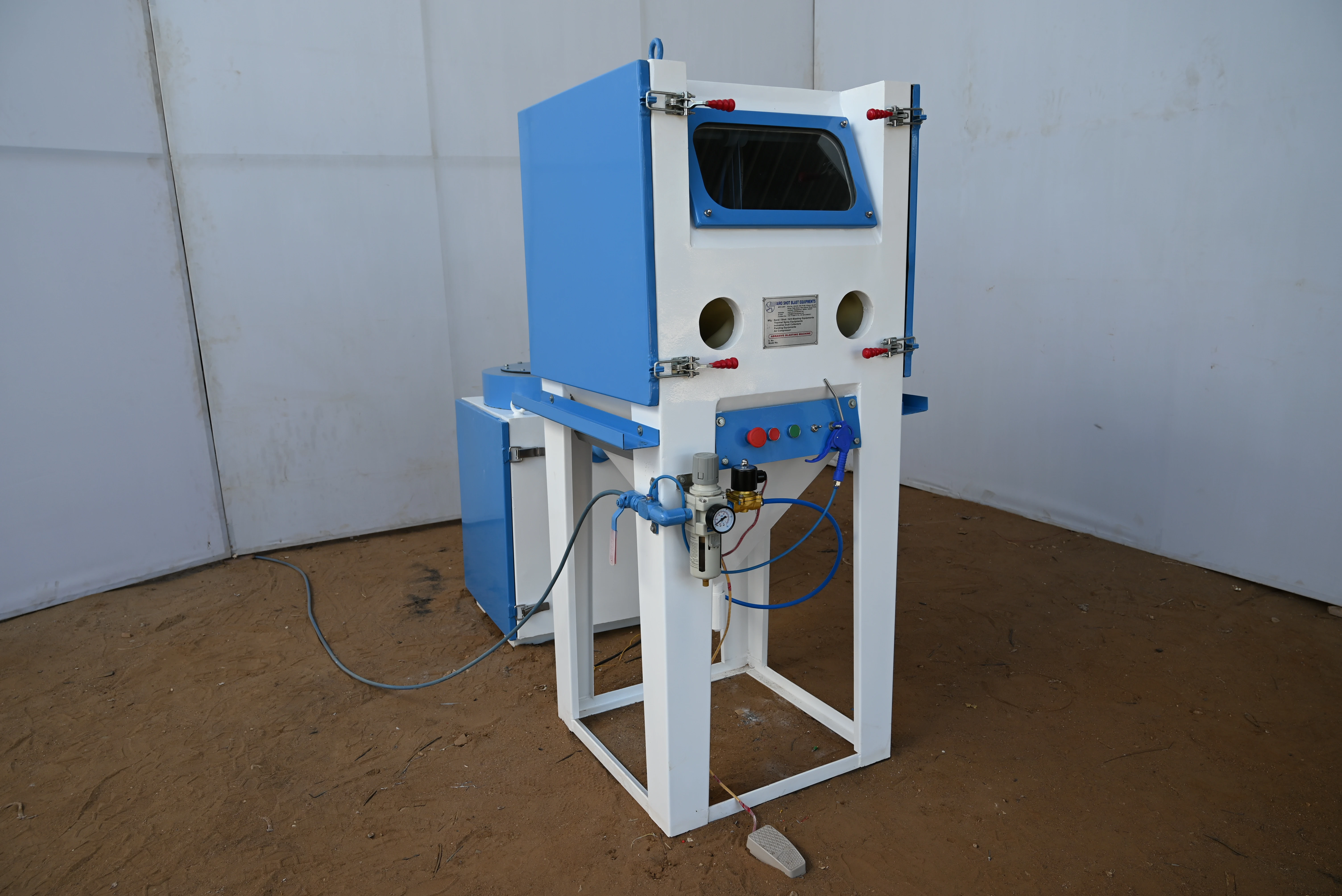

Machine Type: Portable and Cabinet
Abrasive Tank Capacity: 150 Kg – 1000 Kg
Motor Power: 220V
Grade: Manual, Semi-automatic, Automatic
Cleaning rate: 3-21 sqr. mtr/ hr
Shot Blasting Nozzle Size: 5 - 10 MM

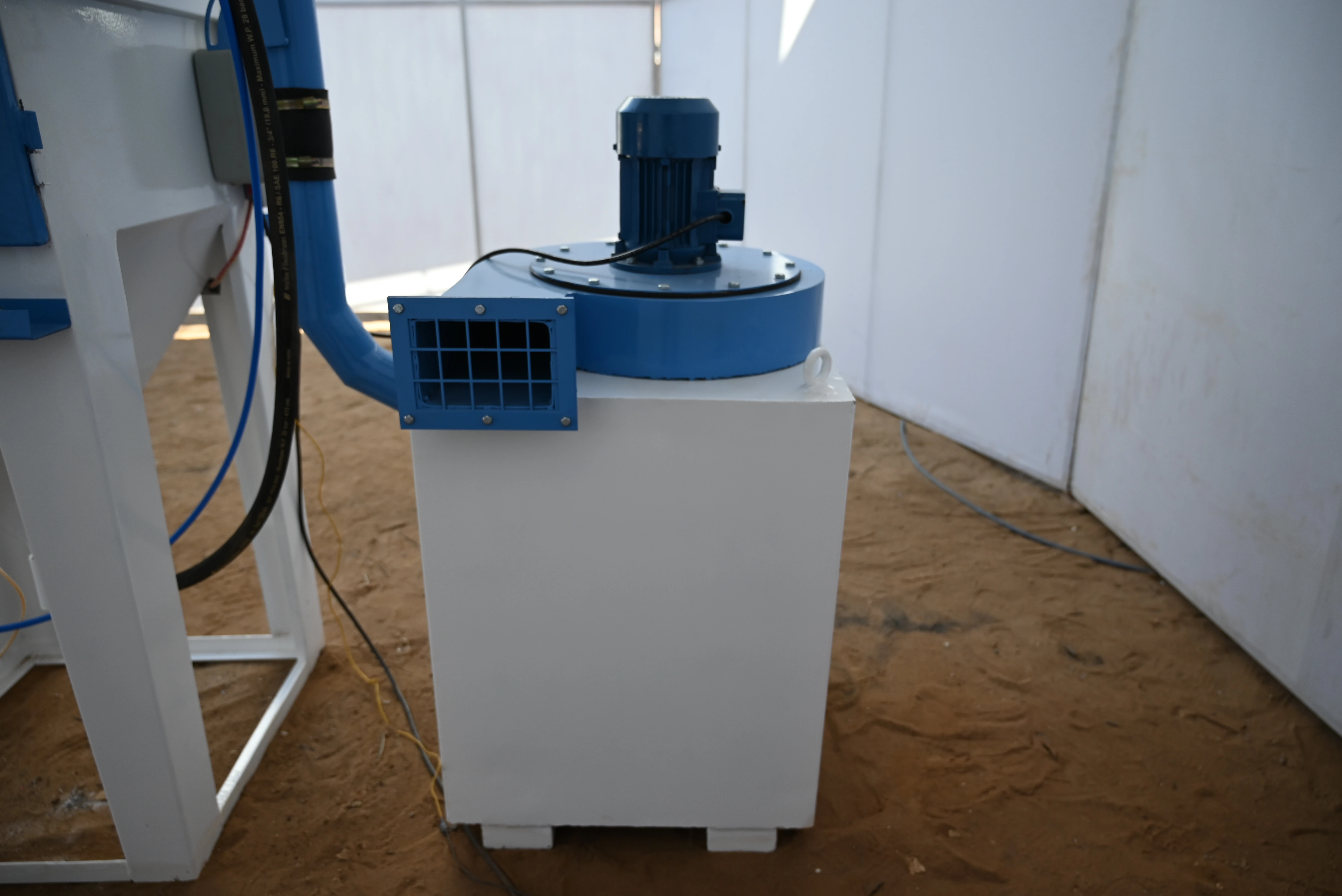

Types of dust collector: Fabric bag dust collector/ Reverse pulse jet pleated filter dust collector
Abrasive media: Steel Shot / Steel Grit

Applications

Casting cleaning
Plate and beam descaling
Coating removal

Description

This type of blasting machine uses a high-speed centrifugal wheel to fling steel shot or grit at metal components, cleaning rust, scale, and casting sand while also deburring and finishing the surface. This is the key difference from sand blasting: sand blasting relies on an air compressor to propel abrasive through a nozzle, while shot blasting relies on the mechanical force of a spinning wheel; no compressed air is needed for the blasting action itself.

Components are typically loaded onto a rotary table, tumbling belt, or swing table depending on machine type, and cleaned as the wheel throws abrasive continuously while control valves open and close to start and stop the blasting cycle.
